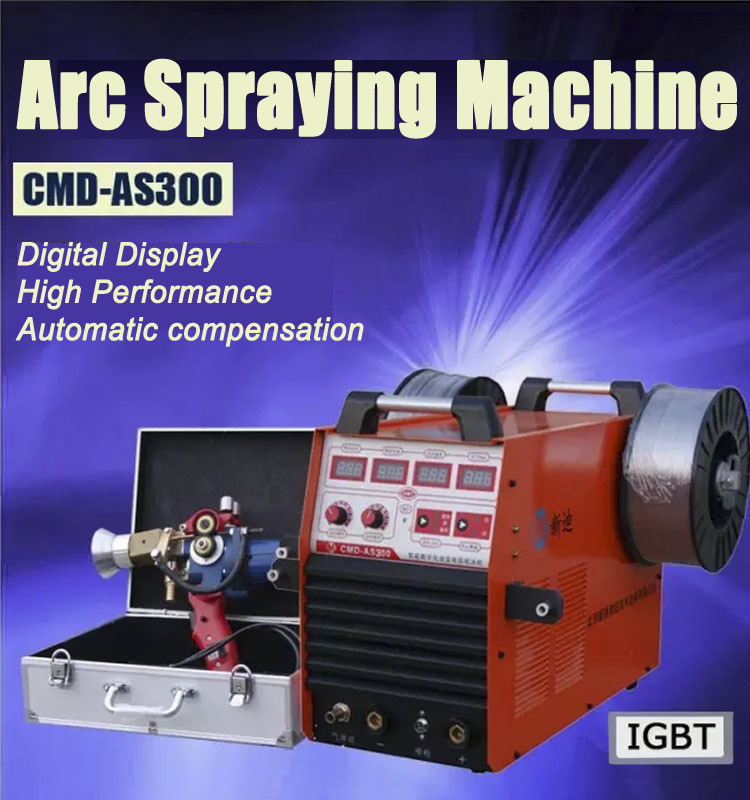

CMD-AS300 Intelligent Digital Inverter Arc Spray Machine
The principle of arc spray is using arc as hot source to atomize the melted metal wire, spray it to the surface of the work piece in high speed and then form a spray coating.
CMD-AS Intelligent Digital Inverter arc spray machine can spray Φ1.0
|
Technical characteristics |
||||
|
Model |
AS300 |
AS400 |
AS500 |
AS600 |
|
Power |
17
KVA |
24
KVA |
30 KVA |
35 KVA |
|
Input
Voltage |
AC380 V Three-phase |
|||
|
Output
Voltage |
10-45Vstepless adjustable |
|||
|
Output
Current |
20 |
50 |
50 |
50 |
|
Duty
Cycle |
100% |
|||
|
Wire
Diameter |
Φ1.0,
Φ1.2, Φ1.5, Φ1.6, Φ2.0, Φ3.0 |
|||
|
Deposition
rate |
|
|
|
|
|
Weight |
|
|
|
|
|
Dimensions |
600×262×445(mm) |
|||
|
Features |
|
1、Small
size and light weight，easy to move on. Import IGBT tubes
(fourth generation), high quality assurance. 2、Output
voltage and current stable and smooth, strong anti-jamming capability. 3、Stable
performance, reliable ignition, prevent to break arc, wire feeding smooth,
reliable and can be 24 hours of continuous operation 4、The
coating mass density is high, quality is good, porosity is less than 1%. 5、The
coating combined with high strength: 30 Mpa - 50 Mpa 6、Arc
spraying efficiency is high, stable arc, less spatter , coating
deposition rate is 75% 95%。 7、flexible
operation, arc spraying width can be fine-tuning. 8、High
efficiency and energy saving, low consumption, power saving is 55% than
ordinary arc machine . High power factor：up to 0.9. 9、A
variety of options: wire drawing, wire pushing, wire drawing and pushing
type, Spray inner wall of pipes φ>50. 10、
The whole machine modular, intelligent, digital display, high precision |
Drawing type arc spray gun
Inner Spray Gun | |
| CMD-EG20 |
Diameter | Φ |
Length | |
Standard Wire Tube Length | |
Optional Wire Tube Length | |
Wire Diameter | Φ |
Spraying productivity | |

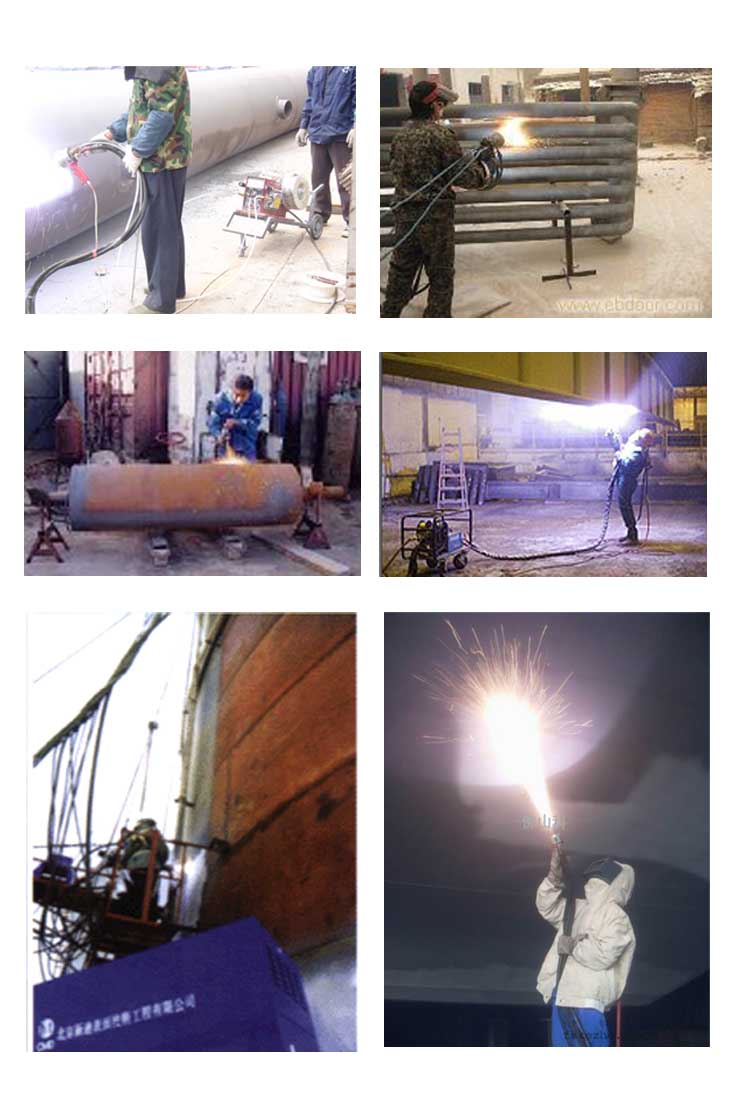

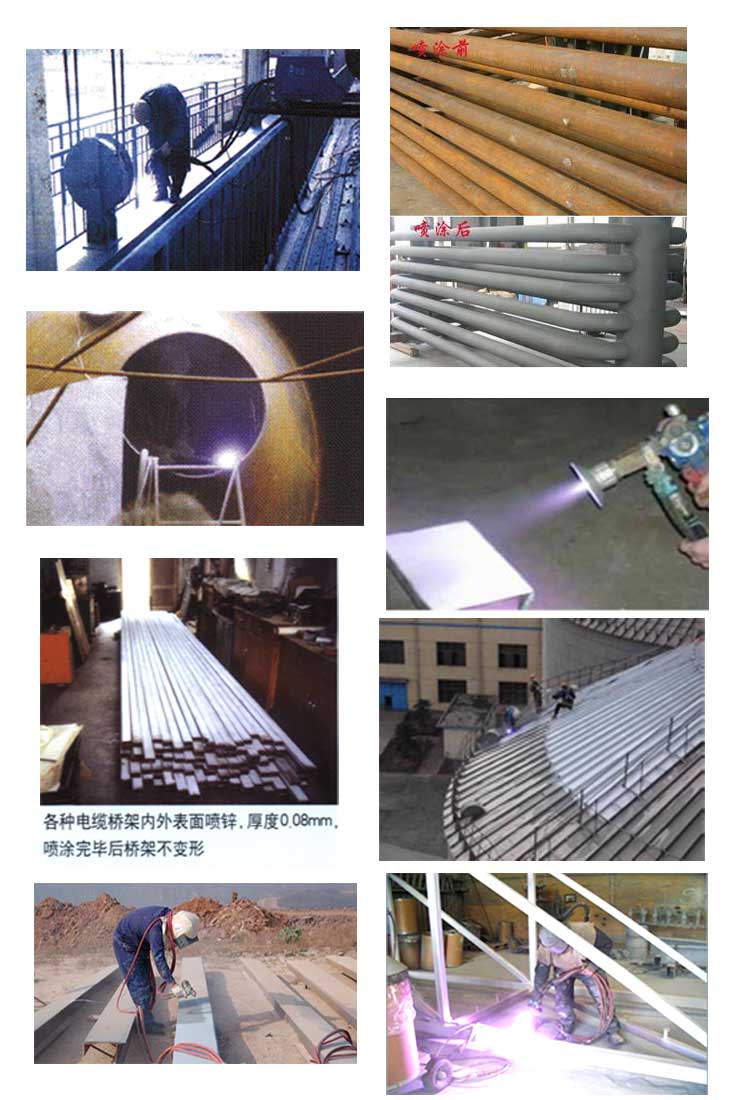

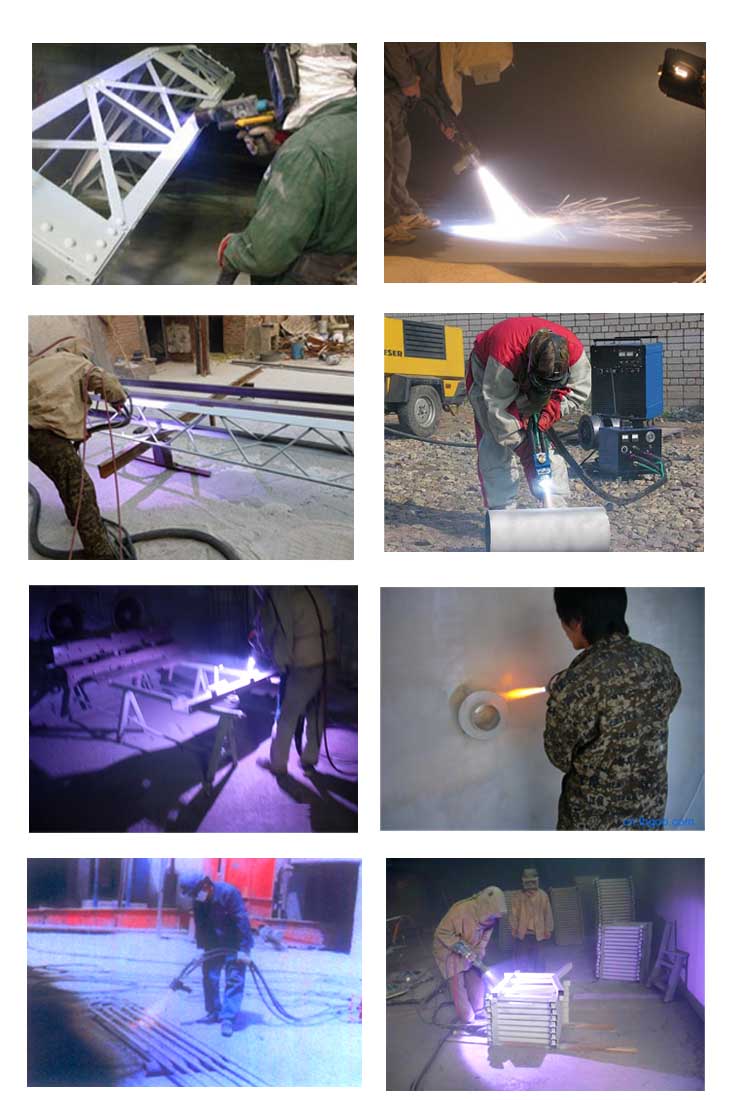

Application example of arc spry machine
Spraying zinc, Instead of hot dip galvanized, Large area of anticorrosive coating
Spraying aluminum Replace
the hot dip aluminum, Large area of anticorrosive coating.
