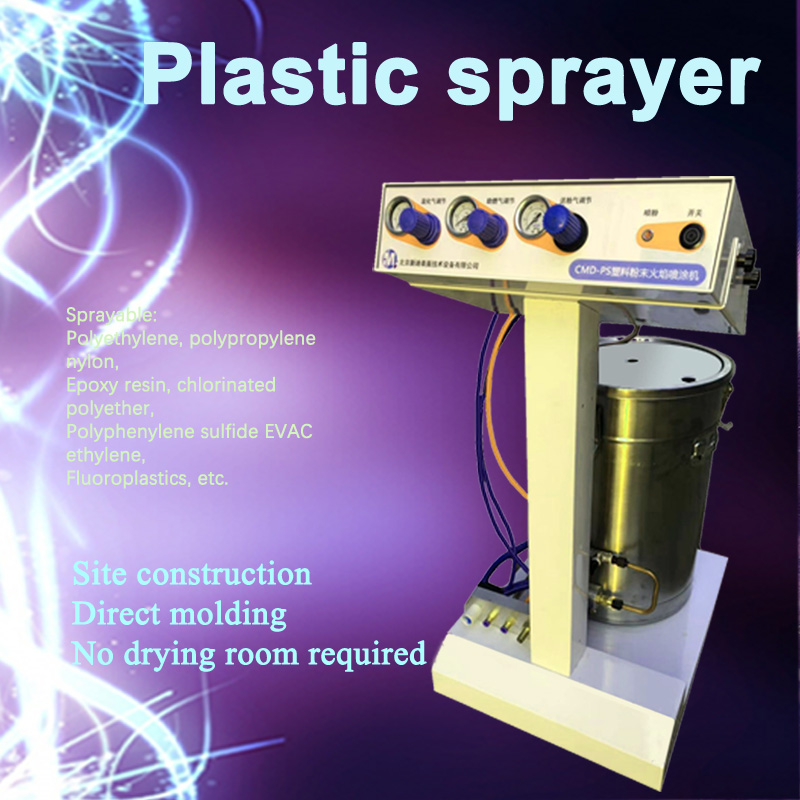

CMD-PS plastic powder flame spraying machine
CMD-PS plastic powder flame spraying machine can spray polyethylene, nylon, epoxy resin, chlorinated polyether, EVAC ethylene vinyl acetate copolymer, polypropylene, polyphenylene sulfide and fluoroplastics.

CMD-PS plastic powder flame spraying machine can spray polyethylene, nylon, epoxy resin, chlorinated polyether, EVAC ethylene vinyl acetate copolymer, polypropylene, polyphenylene sulfide and fluoroplastics.

Equipment principle
CMD-PS plastic powder flame spraying machine uses liquefied gas and compressed air instead of traditional acetylene and oxygen. Its main feature is to simplify the equipment, reduce the use cost, and easily control the flame temperature of the spray gun to prevent burning of the plastic powder. Its working principle is to use compressed air as a protective gas jet flame to heat the sprayed plastic powder to a plastic or molten state and spray it on the pre-treated working surface to form a continuous, uniform, and non-porous plastic coating. Since the powder feeder is not under pressure, the gun can be used to add powder continuously, which ensures that the spray gun is continuous, stable and uniform in all directions for a long time. The spray gun is designed with a special air mixing method and a double-layer protective gas structure, and no backfire occurs during the spraying process. The equipment is suitable for large-area construction in the field, especially in winter in the north (because the traditional oxygen pipe is easy to freeze in winter, but the air will not), it has high efficiency, high coating bonding strength and simple operation.

Equipment composition
Plastic powder flame spray gun, cyclone fluidized bed powder feeder, powder feed pump, pipeline and gas path regulating valve, control valve, powder feed pump and spray gun are composed of no powder accumulation connecting hose. The user prepares a 0.9m3/min air compressor, liquefied petroleum gas (self-prepared by the liquefied gas tank), pressure reducing valve (self-contained by the liquefied gas tank) and pipeline composition.

Plastic Powder Blaze Spraying Equipment, Plastic Spraying Machine

Features
  1. Plastic powder flame spraying is abbreviated as flame spraying, which is mainly used for spraying on a large area for the purpose of corrosion prevention. The characteristic is that the coating is thicker, the coating is simple, the equipment is light and easy to carry, and can be constructed on site.
  2. Compared with electrostatic powder coating and fluidized bed coating, flame spraying has the following advantages:
  • The cost of equipment is low, no special spraying room or drying room is needed.
  • The equipment is light and easy to carry, and can be applied on site, and spraying can be free from the limitation of the size and shape of the workpiece.
  • It can be constructed under environmental conditions such as 100% relative humidity and low temperature.
  • The powder coating does not contain solvents, and there is no need for drying and curing time after spraying, just spray and use.
  • It can be coated with a variety of base materials such as steel and concrete.
  • The coating can be repaired. Small defects can be repaired by heating the surface, and large defects can be re-sprayed.
  • This equipment is mainly used to prepare thick film plastic coatings, the conventional thickness: 0.1mm-3mm, the maximum thickness is 5mm.
  • Easy to change powder and color.
Technical parameter
Input voltage: 220V
Flame temperature: liquefied petroleum gas + air = 2200ºC (maximum temperature)
Compressed air pressure: 0.35-0.6Mpa
Liquefied gas pressure: 0.1~0.15MPa
Plastic powder particle size: 60-100 mesh
Plastic powder characteristics: thermoplastic

Scope of application
Spraying directly on the surface of the workpiece to prepare various plastic coatings resistant to acid, alkali, and salt, without heating and curing devices, especially suitable for large-area flame spraying construction on site, and can partially replace heavy-duty corrosion in terms of anti-corrosion performance, operation technology, and working environment. Painting and fiberglass lining.
