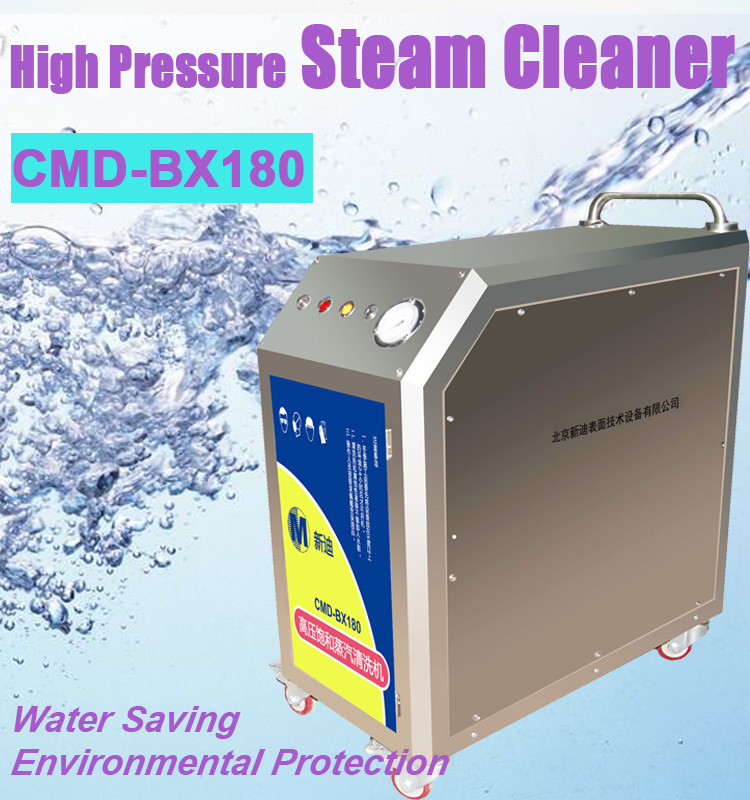

CMD-BX180 High Pressure Saturated Steam Cleaning Machine
Developed and researched for many years, Beijing CMD Surface Technology Equipment Corp manufactures High Pressure Saturated Steam Cleaning Machine Series products . It features simple design, cost saving and satisfactory cleaning effect with high practical value.






CMD-BX180 High Pressure Saturated Steam Cleaning Machine
Developed and researched for many years, Beijing CMD Surface Technology Equipment Corp manufactures High Pressure Saturated Steam Cleaning Machine Series products . It features simple design, cost saving and satisfactory cleaning effect with high practical value.

Traditional cleaning machine uses high pressure water and chemical solvents. It wastes plenty of water and sewage with chemical substance will pollute the environment. High Pressure Saturated Steam Cleaning Machine only uses a few of water and no need any other chemical solvents. Using saturated steam's features of dissolve, vaporize and evaporate obstinate oil stain and blemishes, High Pressure Saturated Steam Cleaning Machine can reach high performance, water saving, environmental protection, super clean and dryness. It is a revolution and set a good example in cleaning industry.



CMD-BX Technical parameters

model

CMD-BX90

CMD-BX180

CMD-BX270

CMD-BX360

CMD-BX540

CMD-BX720

Voltage

380V

380V

380V

380V

380V

380V

current

14A

27.3A

41A

54.7A

82A

109.5A

power

9KW

18KW

27KW

36KW

54KW

72KW

heat production

7.7 Kca/h

15.46 Kca/h

23.193 Kca/h

30.924 Kca/h

46.386 Kca/h

61.848 Kca/h

work pressure

10 Kg/cm2

10 Kg/cm2

10 Kg/cm2

10 Kg/cm2

10 Kg/cm2

10 Kg/cm2

steam production

10.8 Kg/h

25.7Kg/h

38.6Kg/h

51.4Kg/h

77.1Kg/h

102.9Kg/h

Generator temperature

180

180

180

180

180

180

water tank capacity

50 L

50 L

50 L

50 L

50 L

50 L

Detergent tank capacity

5 L

5 L

5 L

5 L

50 L

50 L

water consumption

13 L/h

25 L/h

37.5 L/h

50 L/h

75L/h

102L/h

Hose length

5 m

5 m

5 m

5 m

10 m

10 m

Start Time

5-10min

5-10min

5-10min

5-10min

5-10min

5-10min

Working hours per day

24 h

24 h

24 h

24 h

24 h

24 h

dimensions

950×612×624

410×950×800

470×1050×800

1500×1100×1000

weight

90 Kg

175 Kg

256 Kg

270 Kg

300 Kg

330 Kg

Automatic circulating heating to remove residual water vapor system: remove 20% water vapor remaining in saturated steam and convert it into blue pure dry gas (super-saturated steam


Common industry cleaning methods comparison

Item

Saturated steam

Dry ice

Chemistry

High pressure

Ultrasonic:

Principle



high temperature of saturated steam and high pressure to remove oil stain and blemishes

The frigid temperature of the dry ice -109.3°F or -78.5°C "blasting" against the material to be removed, causes it to shrink and loose adhesion from its sub surface

using organic or inorganic chemical cleaning Liquid to remove dirt, grease, or stains

professional equipment provides high pressure water with multi beam, multi direction, multi pressure

Ultrasonic frequencies generally range between 20 kilohertz and 50 kilohertz, It produces shock waves that undermine dirt and blast it off.

Features



1. Wide applicability: machinery, painting, cold and hot process, electronics and food industry.

2.save energy, green environmental protection

3.low cost, easy to operate

No second pollution, only need to collect dirt Used in special industry of developed country.

Original and general method, cleaning liquid with acid or alkali erodes equipment.

Longer downtime, higher cost

Washing effect depend on water pump quality

Suit for fine particles, no effect for oil stain

Pollution



Meet the requirements of environmental protection

Need to add collector

Serious pollution

Cleaning liquid hurt people and machine.

Serious pollution, being phased out gradually.

There is pollution if use chemical solvents

Effect

 high efficiency. 98%.

Excellent effect

Unable to pipe and hole, metal change after washing

Low efficiency,

need to dry

Good effect In some particular occasions

Economy

low cost,

low consumption,

no cost for environmental protection

High cost for equipment and dry ice

High cost for environmental protection

High cost for consumption and environmental protection

High cost, high consumption, complex technique

Note

Improve working conditions, reduce labor intensity, raise cleaning efficiency, reduce production cost

Requires high airy environment and safety condition.

Damage electronic component, easy to rust.

Requires high water quality and labor protection

It is difficult to hold frequency, temperature, time and medium for deferent object


Features:

Water Saving: Only need 10 Liter water per hour when washing.
Super Clean: In the condition of high temperature and high pressure, saturated steam can catch, dissolve and evaporate any mini size oil stain on the surface and reach super cleanliness.
Environmental protectionNo release any sewage and maleficent chemical material. No produce any environmental pollution. It is harmless to people. All the washing leavings can automatic recollection. The machine can meet the requirements of ISO14000, EMAS and BS-8800 standards.
Safety:It is safety to clean electronic components and PCB without any damage. It is safety for operator by using of many protections: electronic protection, pressure limited, explosion proof valve and low voltage switch on the operation handle.
Economy:
1.     Compare with traditional high pressure cleaning machine, High Pressure Saturated Steam Cleaning Machine not only save water, but also save the cost of sewage treatment.
2.      Work piece surface is dry during cleaning, leave out the drying process.
3.     No need to remove the parts when washing electronic and mechanical equipment. On-line cleaning can save downtime and assistant work.
High Temperature: Operating temperature: 180ºC.
High pressure: Operating pressure: 10Kg/CM2
Dry saturated steam: put saturated steam that comes from steam generator into heat dehydrate circle system, insure the saturated steam that comes from spray gun is blue super dry and super saturated steam.
Dryness: During washing, the surface keeps dry because of high temperature. No water left after washing. No short circuit to electronic equipment. It is suit to clean electronic component and IC without damage.
Passivation: Saturated Steam combined with lotion that contains passivation material can form protective layer. It can prevent metal surface oxidation.
Phosphorization: After washing, phosphorize on the surface by using of saturated steam.
Sterilization: At high temperature above 120ºC, All the microorganisms and bacterial that harm human body are killed by saturation steam.
High efficiency: It is the best efficient washing method in the world. The efficiency can reach 98%.
Antirust: Saturated Steam combined with lotion that contains antirust material can prevent rust. Validity is 30days.
Convenience: assemble many operations in one process; complete the performance of washing, drying and antirust treatment.
Flexible technics: process is adjustable according to consumer demand.


Applications
Cmd-Bx90 High Temperature Saturated Steam CleanerCmd-Bx90 High Temperature Saturated Steam Cleaner
Application field
Cmd-Bx90 High Temperature Saturated Steam CleanerCmd-Bx90 High Temperature Saturated Steam Cleaner
