PA60 Plasma Spraying Equipment Ceramic Sprayer

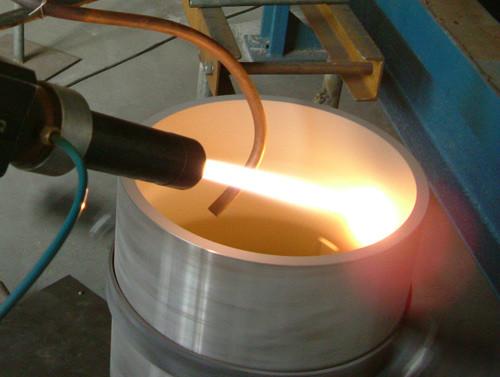

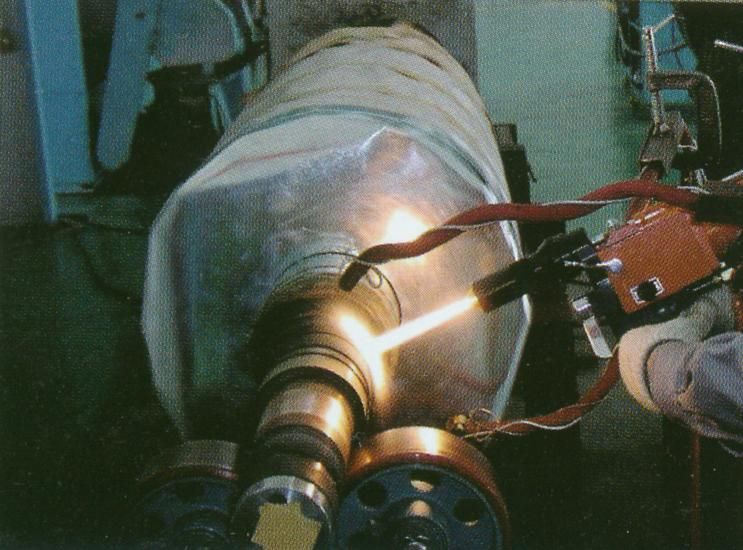

The principle of CMD-PA60 Plasma Spraying Equipment is sending the metal or normetal powder to rigid nor-transfered Plasma blaze, melting it and spraying it to the surface of work piece in high speed, then form a special coating.

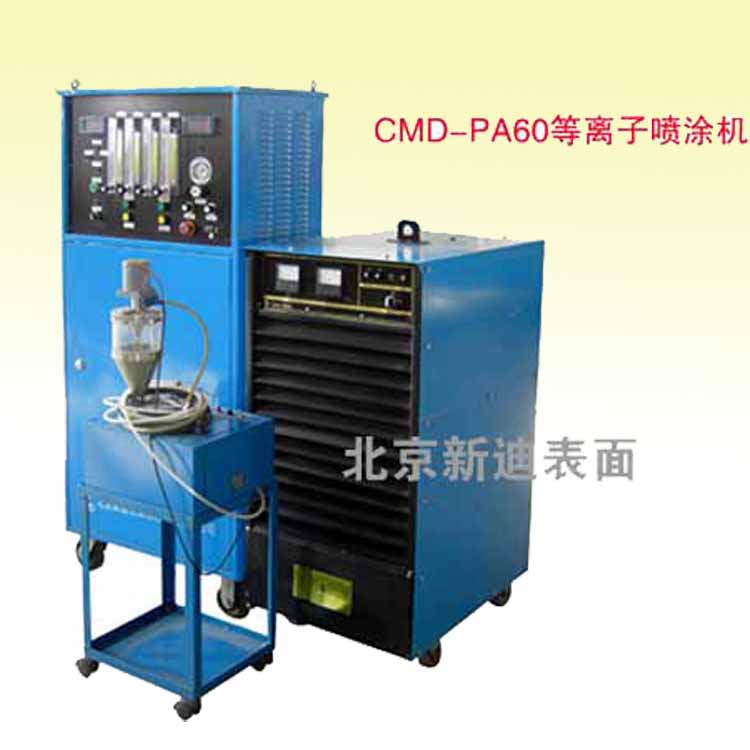

CMD-PA60 Plasma Spraying Equipment
The principle of CMD-PA60 Plasma Spraying Equipment is sending the metal or normetal powder to rigid nor-transfered Plasma blaze, melting it and spraying it to the surface of work piece in high speed, then form a special coating.
Features:
1. Offering metal, plastics, alloy coating with special performance to meet the demand of different surface such such as abrasion-resistant, heat-resistant, corrosive-resistant, insulation, radialization by using of plasm spraying.
2. The coating is smooth and The thickness can be controled exactly.
3. The coating with lower interstice rate: 1-3%, and higher bonding strength: 50-70 Mpa.
4. The coating with lower oxid and impurity.
5. The temperature of work piece can be controled lower than 250º C, so it can be used on the surface of nonmetal materals such as plastics, painting, glass, asbestos fabric.
Characteristics:
Input votage: 380V AC
Empty load output votage: 0-180V DC
The most output current: 0-600A DC
Operating current: 500A DC
Power: 60KW
Dimensions:
Mainframe power: 940X920X550mm
Mainframe control cabinet: 1500X700X450mm
Feeding machine: Φ180X550mm
Weight:
Mainframe power: 350Kg
Mainframe control cabinet: 120Kg
Feeding machine: 5Kg
