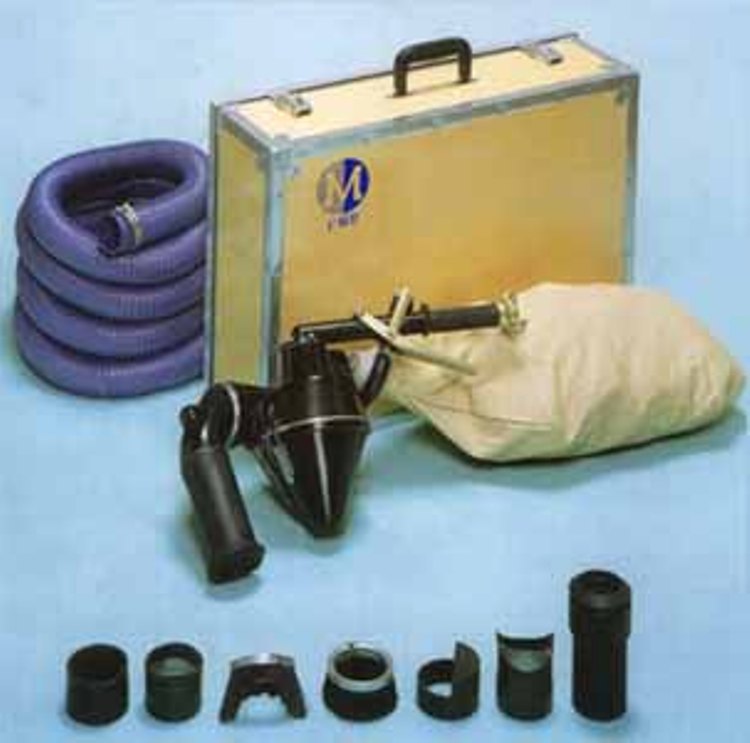

THP Green environmental protection sandblasting machine
The green and environment-friendly sandblasting (pellet) machine is also called a self-recycling and circulating sandblasting (pellet) machine, which can remove the sprayed sand (pellet) abrasive and sprayed rust, oxide scale, The patent leather, impurities, etc. are all automatically withdrawn through the specially designed negative pressure hole on the spray gun in an instant, and sent to the cyclone separator through the recovery pipe to remove the intact sand (pellet) abrasive and the sprayed rust, oxide skin, and paint skin. , dust, impurities, etc. are automatically separated, the sand (pellet) abrasive will automatically return to the material tank for continuous recycling, and the waste will be stored in the recycling box or recycling bag through the dust collector for regular treatment.
CMD-THP Green environmental protection sandblasting machine
The traditional sandblasting (pellet) cleaning method is to use open sandblasting (pellet), especially when sandblasting (pellet) operations are performed outdoors, dust pollution is one of the most troublesome problems. There are three main sources of dust in the process of (pill) operation:
1. Dust and dust present in the abrasive.
2. The dust generated by the crushing of abrasive particles hitting the working surface at high speed.
3. Impurities such as oxide scale and rust layer on the working surface are pulverized by the impact of abrasive particles.
That is to say, the amount of dust generated depends on the quality of the abrasive (dust content), the impact resistance of the abrasive (breakage rate) and the original state of the workpiece surface, while the dust generated in the sandblasting (shot) operation can be in the air. The suspension can last for several hours, and its influence range can be measured in square kilometers. Therefore, except in inaccessible areas, the use of open sandblasting (pellet) machines to operate outdoors is currently strictly restricted around the world, and there are other A difficult problem to solve, namely:
1. Since the sand (pellet) abrasive is not recycled, the cleaning cost is high.
2. Subject to natural conditions, it is difficult to guarantee the construction period.
3. Affect the normal operation of nearby or surrounding operations or activities.
In view of the problems and disadvantages of the open sandblasting machine, Beijing CMD Surface Technology Equipment Co., Ltd. has developed and mass-produced a series of "green environmental protection" sandblasting (pellet) with strong surface technology processing high-tech strength and talent advantages. ) machine, and put it into large-scale use and operation on the site of ships, petroleum, petrochemical, chemical, electric power, metallurgy, mining, aircraft, railways, bridges, steel structures, pipelines, anti-corrosion construction, vehicles, municipal construction, boilers .
The green and environment-friendly sandblasting (pellet) machine is also called a self-recycling and circulating sandblasting (pellet) machine, which can remove the sprayed sand (pellet) abrasive and sprayed rust, oxide scale, The patent leather, impurities, etc. are all automatically withdrawn through the specially designed negative pressure hole on the spray gun in an instant, and sent to the cyclone separator through the recovery pipe to remove the intact sand (pellet) abrasive and the sprayed rust, oxide skin, and paint skin. , dust, impurities, etc. are automatically separated, the sand (pellet) abrasive will automatically return to the material tank for continuous recycling, and the waste will be stored in the recycling box or recycling bag through the dust collector for regular treatment.
The green environmental protection series sandblasting (pellet) machine is easy to operate, flexible in movement, dust-free and soil-free, no protective gear and sandblasting room required during sandblasting (pellet) operation, and it improves the quality and greatly reduces the cost. It is currently the first choice. Sandblasting (pellet) cleaning equipment.
1. Dust and dust present in the abrasive.
2. The dust generated by the crushing of abrasive particles hitting the working surface at high speed.
3. Impurities such as oxide scale and rust layer on the working surface are pulverized by the impact of abrasive particles.
That is to say, the amount of dust generated depends on the quality of the abrasive (dust content), the impact resistance of the abrasive (breakage rate) and the original state of the workpiece surface, while the dust generated in the sandblasting (shot) operation can be in the air. The suspension can last for several hours, and its influence range can be measured in square kilometers. Therefore, except in inaccessible areas, the use of open sandblasting (pellet) machines to operate outdoors is currently strictly restricted around the world, and there are other A difficult problem to solve, namely:
1. Since the sand (pellet) abrasive is not recycled, the cleaning cost is high.
2. Subject to natural conditions, it is difficult to guarantee the construction period.
3. Affect the normal operation of nearby or surrounding operations or activities.
In view of the problems and disadvantages of the open sandblasting machine, Beijing CMD Surface Technology Equipment Co., Ltd. has developed and mass-produced a series of "green environmental protection" sandblasting (pellet) with strong surface technology processing high-tech strength and talent advantages. ) machine, and put it into large-scale use and operation on the site of ships, petroleum, petrochemical, chemical, electric power, metallurgy, mining, aircraft, railways, bridges, steel structures, pipelines, anti-corrosion construction, vehicles, municipal construction, boilers .
The green and environment-friendly sandblasting (pellet) machine is also called a self-recycling and circulating sandblasting (pellet) machine, which can remove the sprayed sand (pellet) abrasive and sprayed rust, oxide scale, The patent leather, impurities, etc. are all automatically withdrawn through the specially designed negative pressure hole on the spray gun in an instant, and sent to the cyclone separator through the recovery pipe to remove the intact sand (pellet) abrasive and the sprayed rust, oxide skin, and paint skin. , dust, impurities, etc. are automatically separated, the sand (pellet) abrasive will automatically return to the material tank for continuous recycling, and the waste will be stored in the recycling box or recycling bag through the dust collector for regular treatment.
The green environmental protection series sandblasting (pellet) machine is easy to operate, flexible in movement, dust-free and soil-free, no protective gear and sandblasting room required during sandblasting (pellet) operation, and it improves the quality and greatly reduces the cost. It is currently the first choice. Sandblasting (pellet) cleaning equipment.
Features |
Indoor and outdoor, large and small pieces, dust-free, environmental jobs, reduce costs, conserve abrasive, flexible operation, safe and reliable |
Applications area |
Cleaning of welds, repair and cleaning of various surfaces, sandblasting (pellet) cleaning operations in narrow spaces, surface cleaning and polishing of carving and sculpture, and cleaning of various parts in the repair industry. |
|
CMD-THP Technical characteristics |
|||
|
Air
supply pressure |
0.5-0.7MPa |
Working
radius |
unlimited |
|
Air
supply flow |
1.6-3m3/min |
Abrasive particle size |
20-60mesh |
|
Work method |
continuous recycling |
Surface
treatment level |
Sa2.5-Sa3.0 |
|
Efficiency |
14 |
Weight |
2.5Kg |
